Microscope EXM-150 - Monocular Head, 40-400X Magnification, Disc Diaphagm, Cordless LED Illumination

• DISC DIAPHRAGM || Fitted with a single eyepiece, three objectives, and a standard stage with five aperture disc diaphragm. Its intuitive design and controls ensure effortless operation, making it ideal for students of all levels
• CRISP IMAGES AT 40X-400X || High-quality DIN optics in 4x, 10x, and 40xR* (*spring-loaded) objectives provide clear, 40X-400X magnification. Variable LED control delivers bright, even illumination for excellent image contrast
• CORDLESS & PORTABLE || With rechargeable LED illumination, built-in carry handle, and cord wrap, this microscope is highly portable, allowing you to take it wherever you need. Its compact size makes it easy to transport and store when not in use
• PRECISE FOCUS ADJUSTMENT || Features separate coarse and fine focus adjustment controls, allowing for precise focusing of specimens. The tension adjustment on the coarse control ensures smooth and accurate adjustments
• STUDENT PROOF DESIGN || Equipped with a built-in slip clutch system and pre-set focus stop to prevent accidental damage to objectives and slides. This design feature ensures durability and protects your investment for long-lasting use

Easy to use and student friendly, the Accu-Scope EXM-150 microscope features a monocular head with disc diaphragm LED. Highly portable with a built-in carry handle, cord wrap, and rechargeable LED illumination. Separate coarse and fine focus adjustment controls with tension adjustment on the coarse control. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides. Includes DIN achromat 4x, 10x and 40xR* objectives (* spring loaded).

Specifications

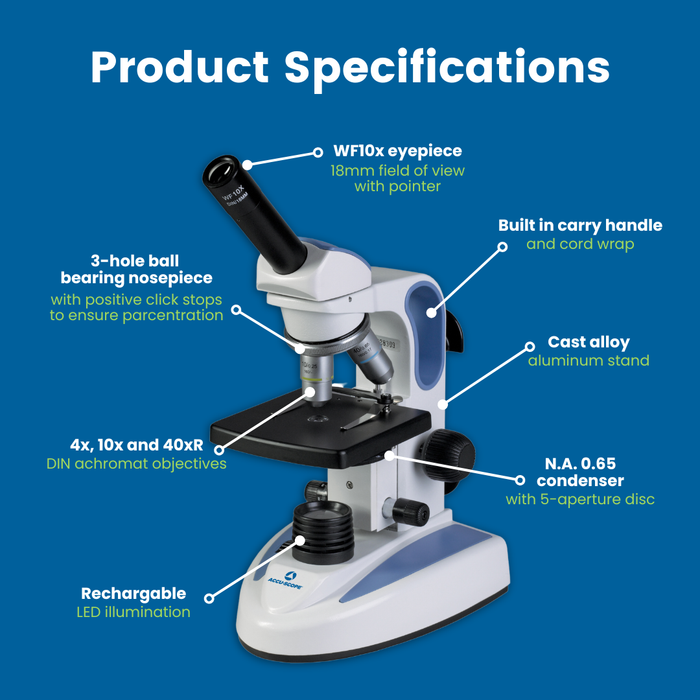

- Optical System: DIN Optical System, f=160mm.

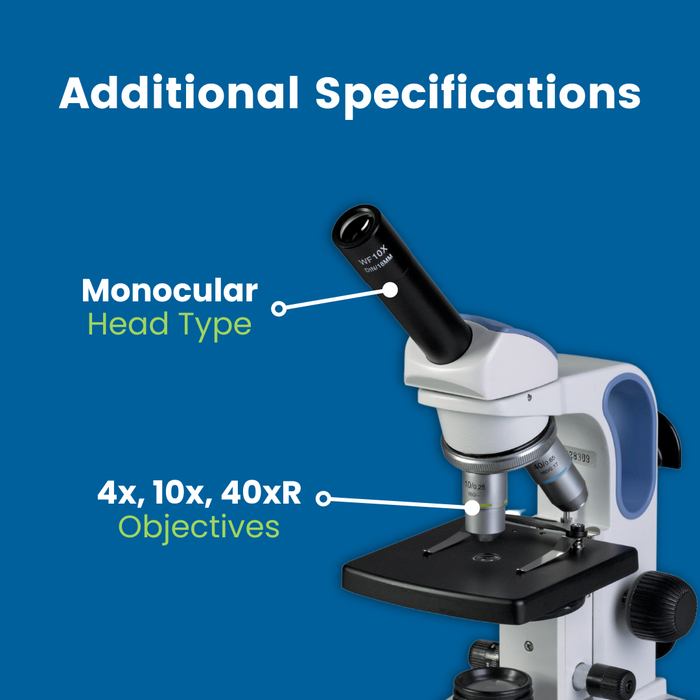

- Viewing Head: Monocular inclined head.

- Eyepieces: WF10x eyepiece, 18mm field of view with pointer. Eyepiece is locked-in to prevent classroom tampering.

- Nosepiece: Rear facing three-hole, ball bearing nosepiece with positive click stops to ensure parcentration.

- Objectives: Standard configuration includes DIN achromat 4x, 10x and 40xR* objectives (*spring-loaded).

- Stage: Stage size 119mm X 119mm with stage clips.

- Condenser: N.A. 0.65 condenser with five aperture disc.

- Stand: Cast alloy aluminum with built-in carry handle and cord hangers.

- Illumination: Variable and rechargeable LED illuminator. LED illuminators will last approximately 4 hours on a single charge and the expected bulb life is 20,000 hours. 3500mAh NiMH rechargeable battery.

- Focusing System: Separate coarse and fine focus adjustment controls. A tension adjustment is on the coarse control. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides.

- Accessories: Dust cover and instruction manual included.

- Certification: ISO 9001: 2018 and ISO 14001: 2018; CE; RoHS

- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

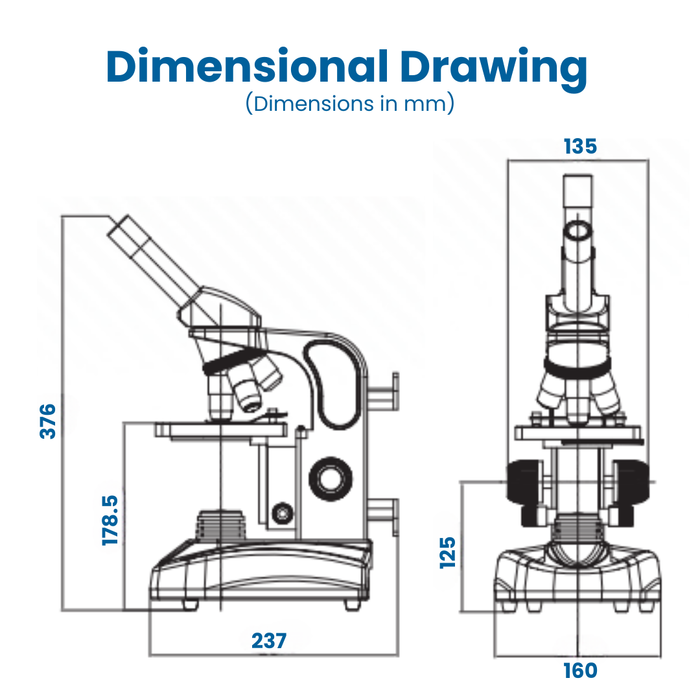

- Microscope Dimensions (LWH): 238mm x 184mm x 381mm
