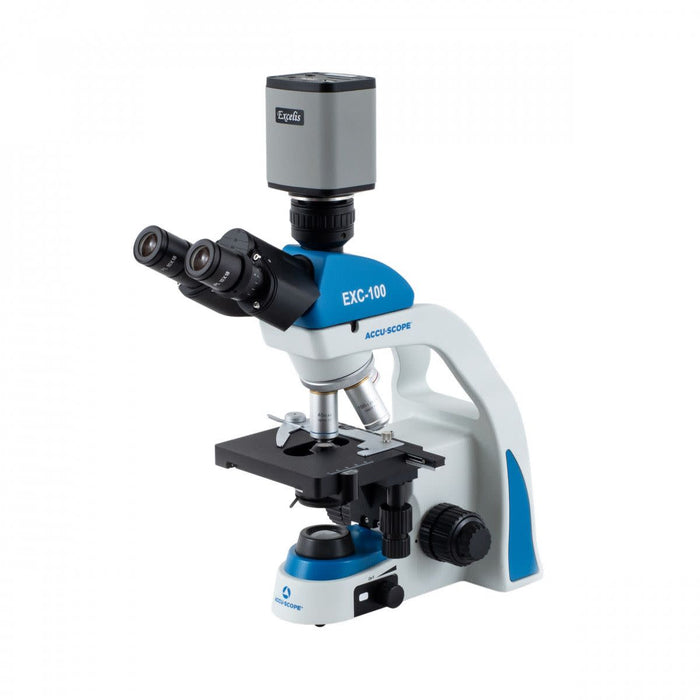

The Accu-Scope EXC-103-HD features a 360° rotatable trinocular viewing head; 30° inclined paired PL10x/18mm eyepieces (paired - one w/pointer); diopter adjustment; and reversed quadruple nosepiece. It is also equipped with DIN achromat 4x, 10x, 40xR and 100xR oil objectives; mechanical stage with low position coaxial coarse and fine focusing controls with adjustable tension control; and Abbe condenser on spiral mount, N.A. 1.25 with iris diaphragm & filter holder. The variable LED illuminator is powered by power cord or rechargeable battery for portability. A built-in fixed focus stop allows for rapid focusing while protecting specimens. Includes dust cover, power cord, and manual.
The Excelis HD Lite high-fidelity Color Microscopy Camera delivers true, real-time 1080P HD images for a wide variety of scientific, education and industrial applications. While the on-board software allows operation without a PC, you can also capture 5 MB still images and video at 15 fps to your computer via USB 2.0 cable or SD card for advanced image processing using the imaging software for Windows PCs only.

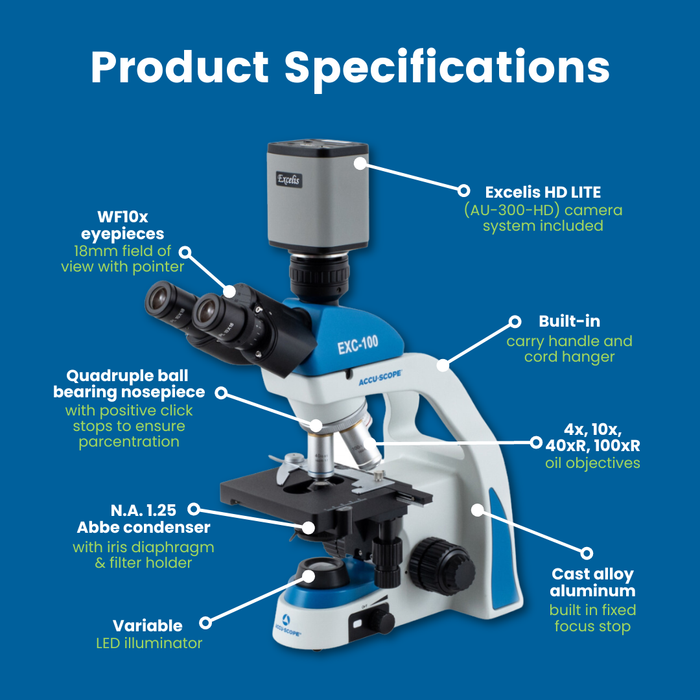

Specifications
- Optical System: DIN Optical System, f=160mm, Anti-Mold
- Viewing Head: Trinocular; Inclined 30° and rotatable 360°; Single diopter adjustment; Interpupillary distance adjustment 50-75mm.

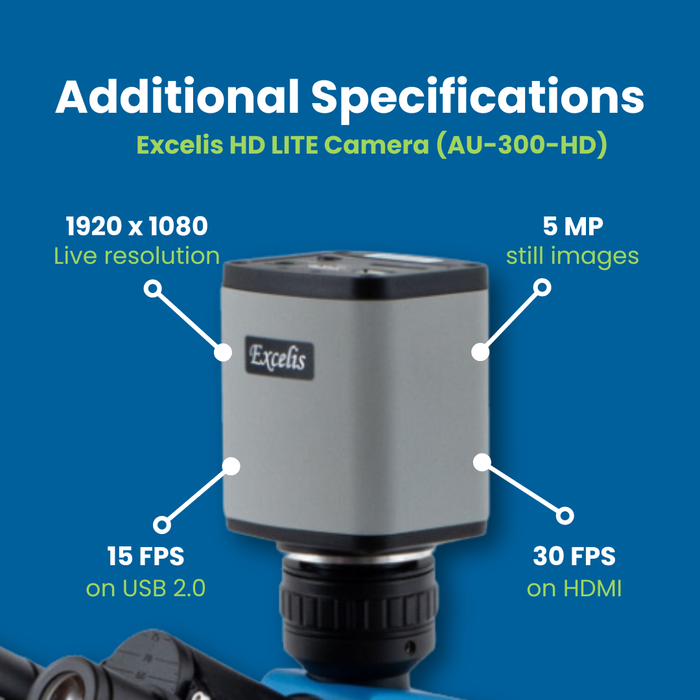

- Camera: Includes Excelis™ HD LITE (AU-300-HD) HD camera system and 0.5x c-mount adapter. Sensor: 1/2.5" Aptina MT9P031 color CMOS, 2.2µm pixels. Live Resolution: 1920 x 1080. Capture Resolution: 5MP (2592 x 1944). Frame Rate: HDMI: 30fps / USB2.0: 15fps. Image Capture: Hi Speed SD Card (8GB). Video Capture: HDMI: 1080p, 15fps to SD Card / USB2.0: 1080p, 15fps to PC. Advanced Camera Controls: Still image measurement and annotation, flatfield correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function. Output Mode: HDMI or USB 2.0. Power Supply: DC 12V/1A. PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
- Eyepieces: WF10x/18mm field of view; a pointer is standard in one eyepiece; eyepieces are locked in to prevent tampering.
- Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration.
- Objectives: Achromat objectives; 4x, 10x, 40xR* and 100xR oil* (*spring-loaded).
- Stage: Double-layer mechanical stage; size 115mm x 125mm; right hand control; vernier scale.
- Condenser: N.A. 1.25 Abbe condenser with iris diaphragm and filter holder.
- Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger.
- Illumination: Variable LED illumination, 0.2W; bulb life rated for 20,000 hours; rechargeable.
- Focusing System: Coaxial coarse and fine focus with adjustable tension control, 13mm focus travel; focus travel lock; all metal gears.
- Power: Power adapter delivers 5V/1A to microscope from 100V-240V input
- Accessories: HDMI cable, USB 2.0 cable, 12V power adapter, 8GB SD card, USB mouse, and CaptaVision PC imaging software, dust cover and instruction manual included.
- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL listed; CE.
- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
- Microscope Dimensions (LWH): 255mm x 198mm x 368mm
