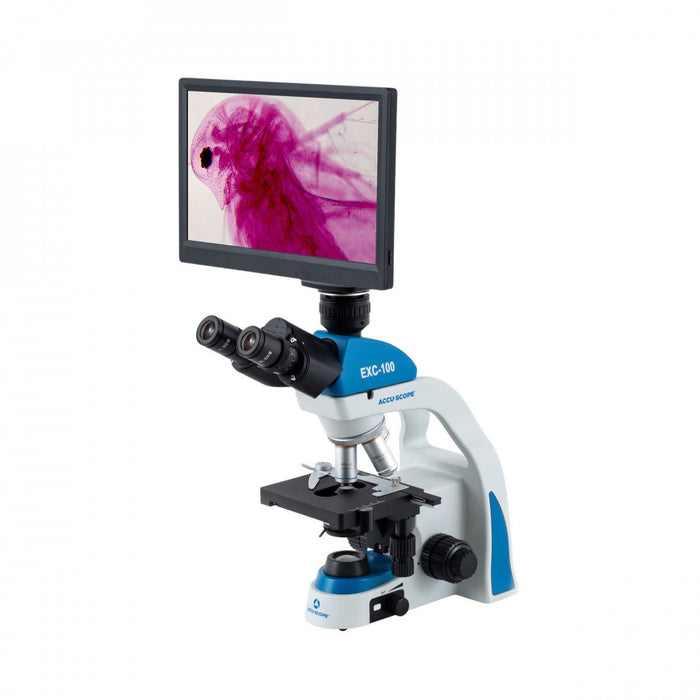

Digital Microscope with Camera & 11.6" LCD Monitor, EXC-103-HDS - Trinocular Head, 40-1000X Magnification, Cordless LED Illumination - 1080p Resolution - 5 MP Image & 15 FPS Video Capture - HDMI/USB 2.0 Outputs

• MICROSCOPE WITH CAMERA SYSTEM || This advanced trinocular viewing head microscope has a rugged, die-cast aluminum frame with all metal gears and anti-mold optics is designed for years of use. A high-fidelity color microscopy camera is included for true, real-time 1080p HD images on the integrated monitor
• INTEGRATED HD DISPLAY || Use the included 11.6" HD monitor to start viewing and capturing images right out of the box. It mounts directly to the Excelis HD camera body for convenient access and doesn't take up valuable bench space
• CRISP IMAGES AT 40X-1000X || High-quality DIN optics in 4x, 10x, 40xR*, and 100xR* (*spring-loaded) objectives provide clear, 40X-1000X magnification. Variable LED control delivers bright, even illumination for excellent image contrast
• ERGONOMIC || Features interpupillary adjustment on the binocular viewing objectives and low positioned coaxial focusing mechanism for complete ergonomic comfort to users during extended viewing periods
• CORDLESS & PORTABLE || With rechargeable LED illumination, built-in carry handle, and cord wrap, this microscope is highly portable, allowing you to take it wherever you need

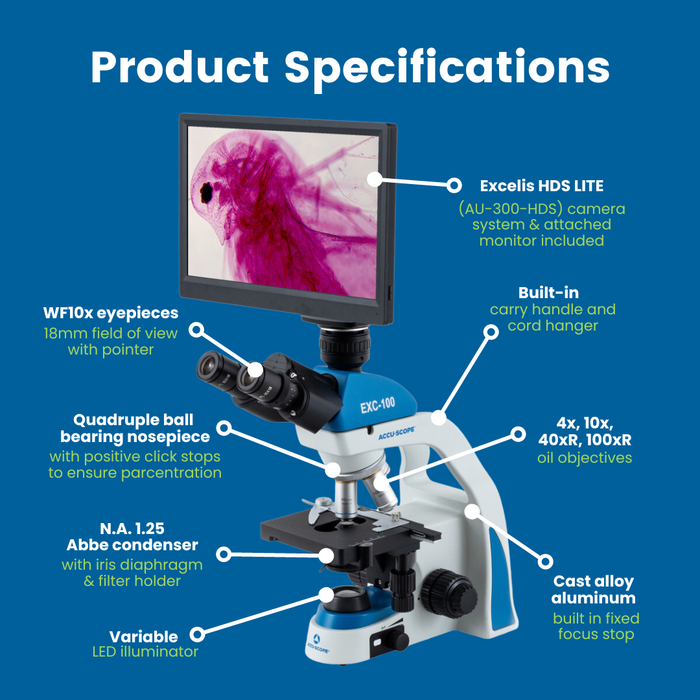

The Accu-Scope EXC-103-HDS features a 360° rotatable trinocular viewing head; 30° inclined paired PL10x/18mm eyepieces (paired - one w/pointer); diopter adjustment; and reversed quadruple nosepiece. It is also equipped with DIN achromat 4x, 10x, 40xR and 100xR oil objectives; mechanical stage with low position coaxial coarse and fine focusing controls with adjustable tension control; and Abbe condenser on spiral mount, N.A. 1.25 with iris diaphragm & filter holder. The variable LED illuminator is powered by power cord or rechargeable battery for portability. A built-in fixed focus stop allows for rapid focusing while protecting specimens. Includes dust cover, power cord, and manual.

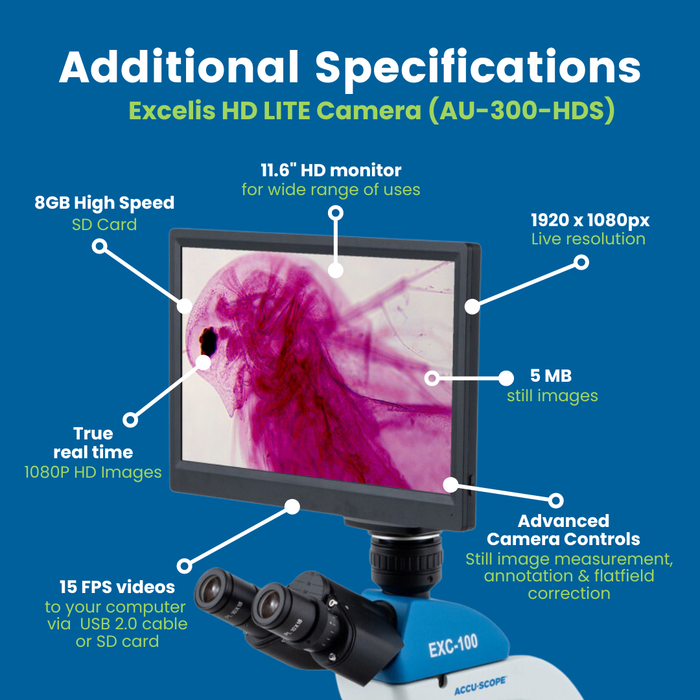

The Excelis HD Lite high-fidelity Color Microscopy Camera delivers true, real-time 1080P HD images to the attached 11.6" HD monitor for a wide variety of scientific, education and industrial applications. You can also capture 5 MB still images and video at 15 fps to your computer via USB 2.0 cable or SD card for advanced image processing using the imaging software for Windows PCs only.

Specifications

- Optical System: DIN Optical System, f=160mm, Anti-Mold

- Viewing Head: Trinocular; Inclined 30° and rotatable 360°; Single diopter adjustment; Interpupillary distance adjustment 50-75mm.

- Camera: Includes Excelis™ HD LITE (AU-300-HDS) HD camera system and 0.5x c-mount adapter. Sensor: 1/2.5" Aptina MT9P031 color CMOS, 2.2µm pixels. Live Resolution: 1920 x 1080. Capture Resolution: 5MP (2592 x 1944). Frame Rate: HDMI: 30fps / USB2.0: 15fps. Image Capture: Hi Speed SD Card (8GB). Video Capture: HDMI: 1080p, 15fps to SD Card / USB2.0: 1080p, 15fps to PC. Advanced Camera Controls: Still image measurement and annotation, flatfield correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function. Output Mode: HDMI or USB 2.0. Power Supply: DC 12V/1A. PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)

- Monitor: 11.6" HD. Mounts directly to the Excelis HD camera body

- Eyepieces: WF10x/18mm field of view; a pointer is standard in one eyepiece; eyepieces are locked in to prevent tampering.

- Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration.

- Objectives: Achromat objectives; 4x, 10x, 40xR* and 100xR oil* (*spring-loaded).

- Stage: Double-layer mechanical stage; size 115mm x 125mm; right hand control; vernier scale.

- Condenser: N.A. 1.25 Abbe condenser with iris diaphragm and filter holder.

- Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger.

- Illumination: Variable LED illumination, 0.2W; bulb life rated for 20,000 hours; rechargeable.

- Focusing System: Coaxial coarse and fine focus with adjustable tension control, 13mm focus travel; focus travel lock; all metal gears.

- Power: Power adapter delivers 5V/1A to microscope from 100V-240V input

- Accessories: HDMI cable, USB 2.0 cable, 12V power adapter, 8GB SD card, USB mouse, and CaptaVision PC imaging software, dust cover and instruction manual included.

- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL listed; CE.

- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

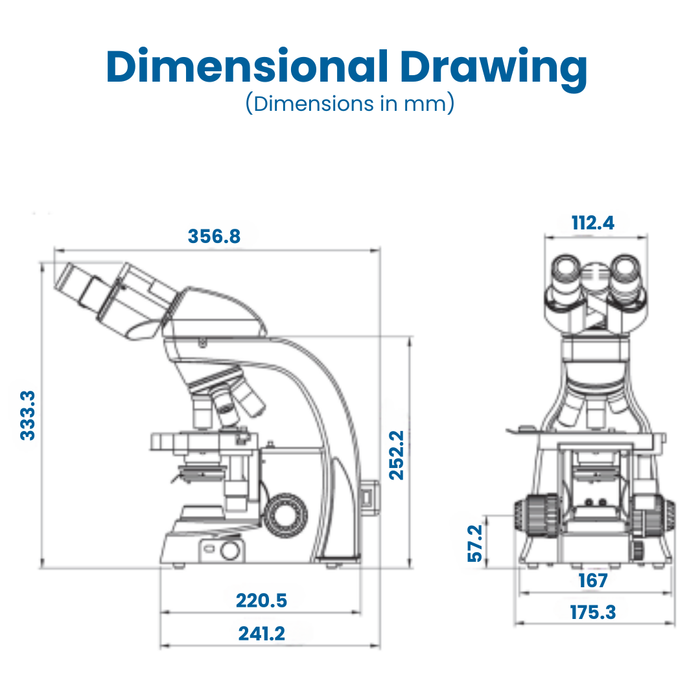

- Microscope Dimensions (LWH): 255mm x 198mm x 368mm
